Hidden Winch Mount | 5th Gen | 2019-2024 RAM 1500 DT

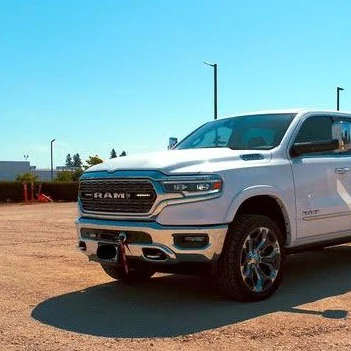

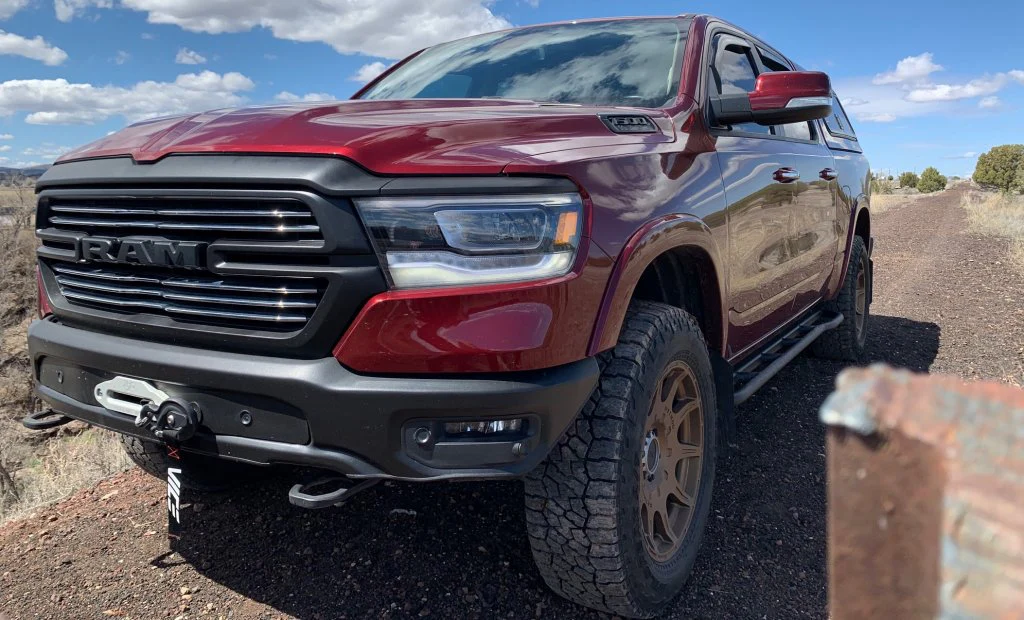

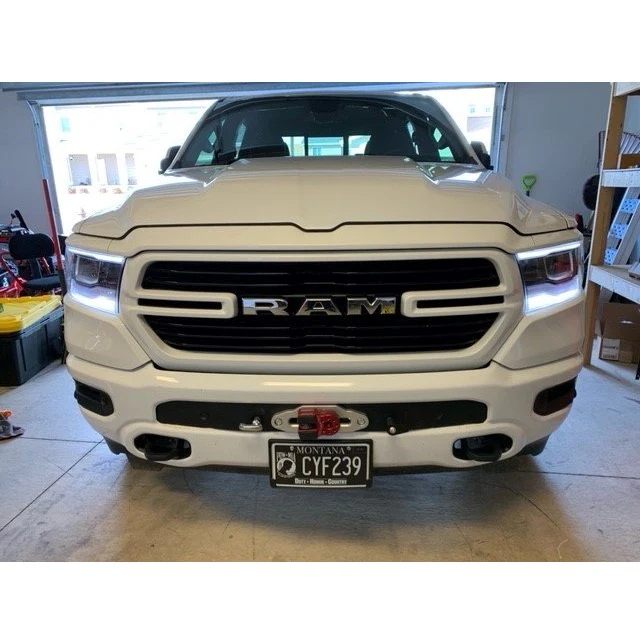

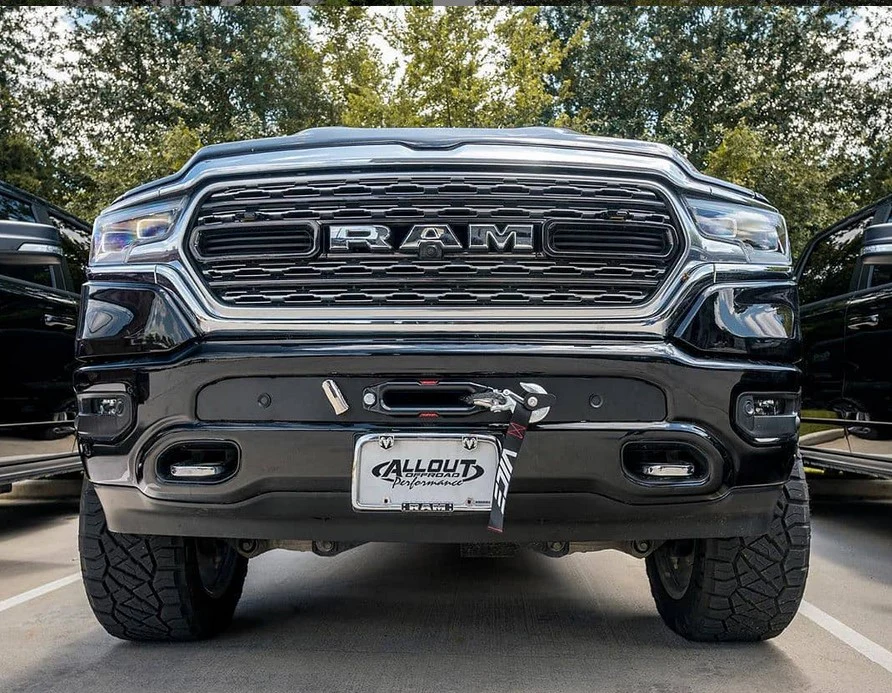

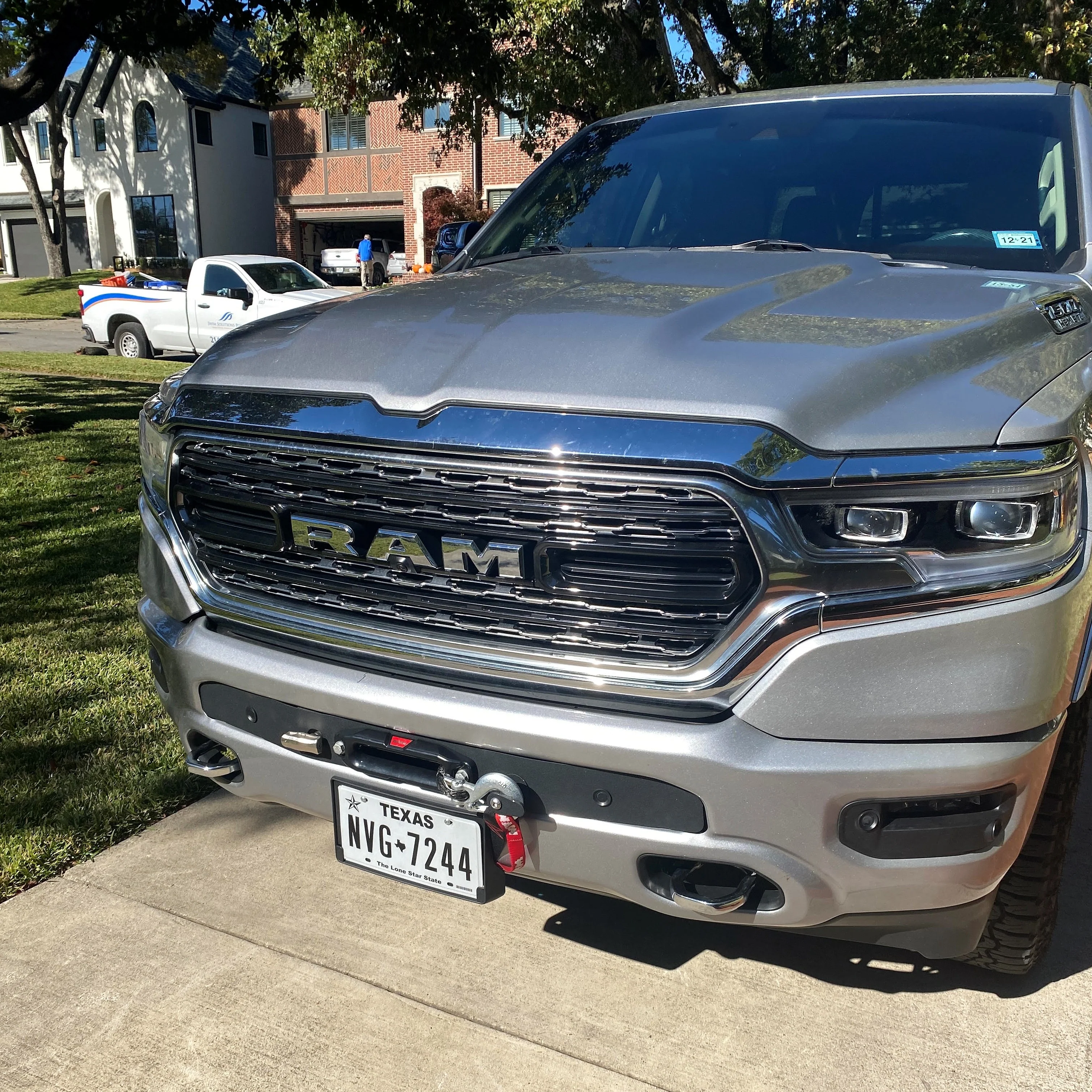

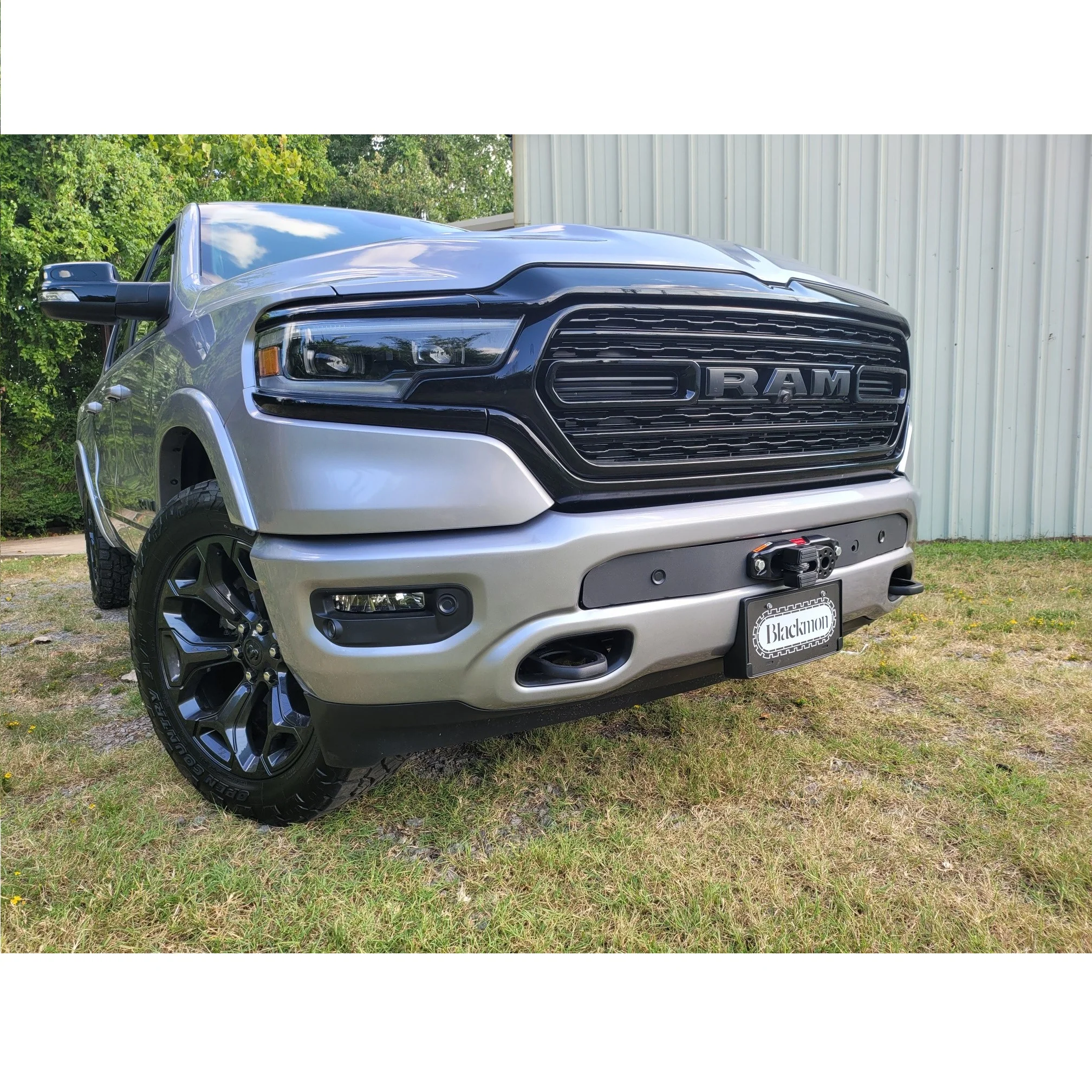

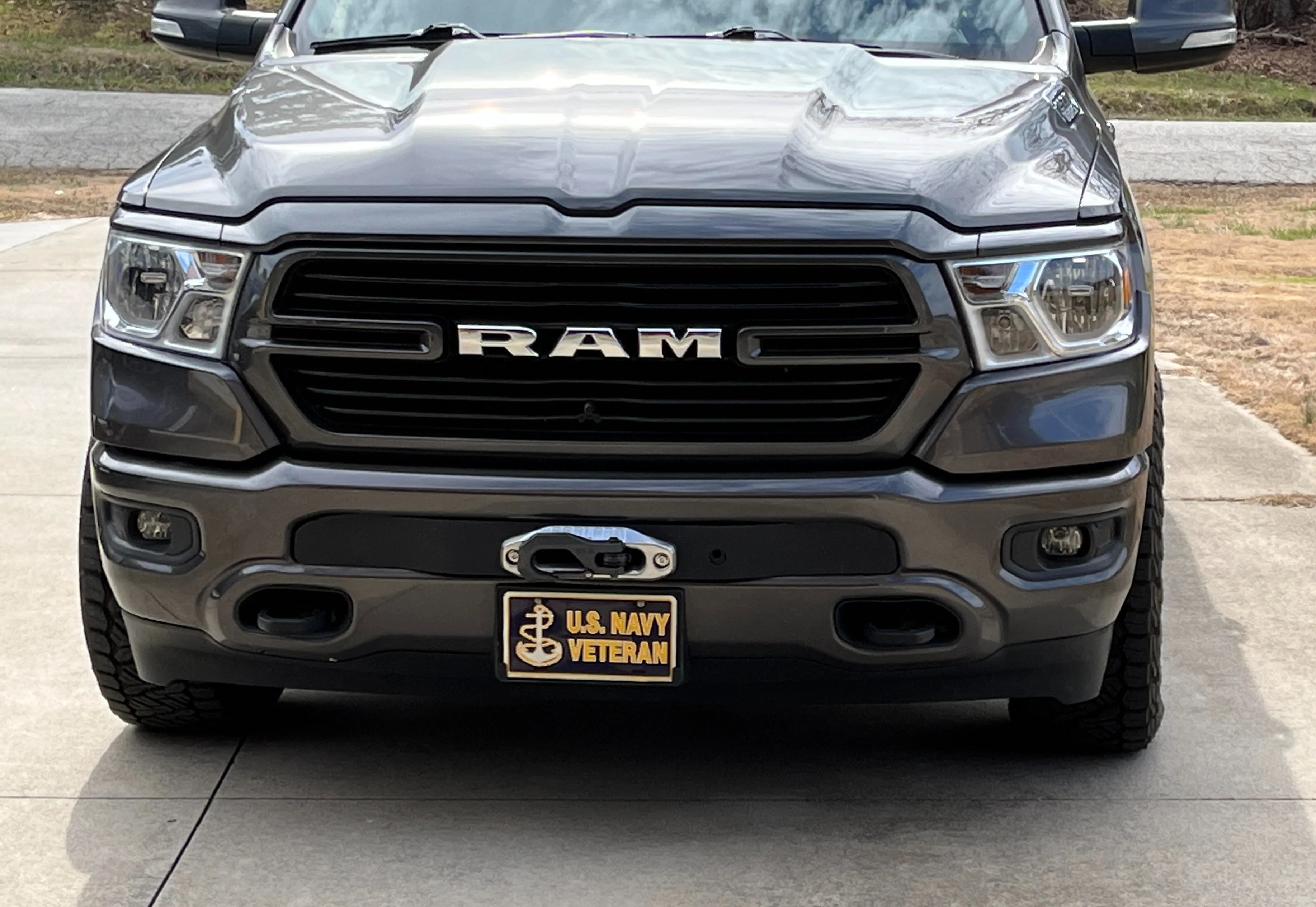

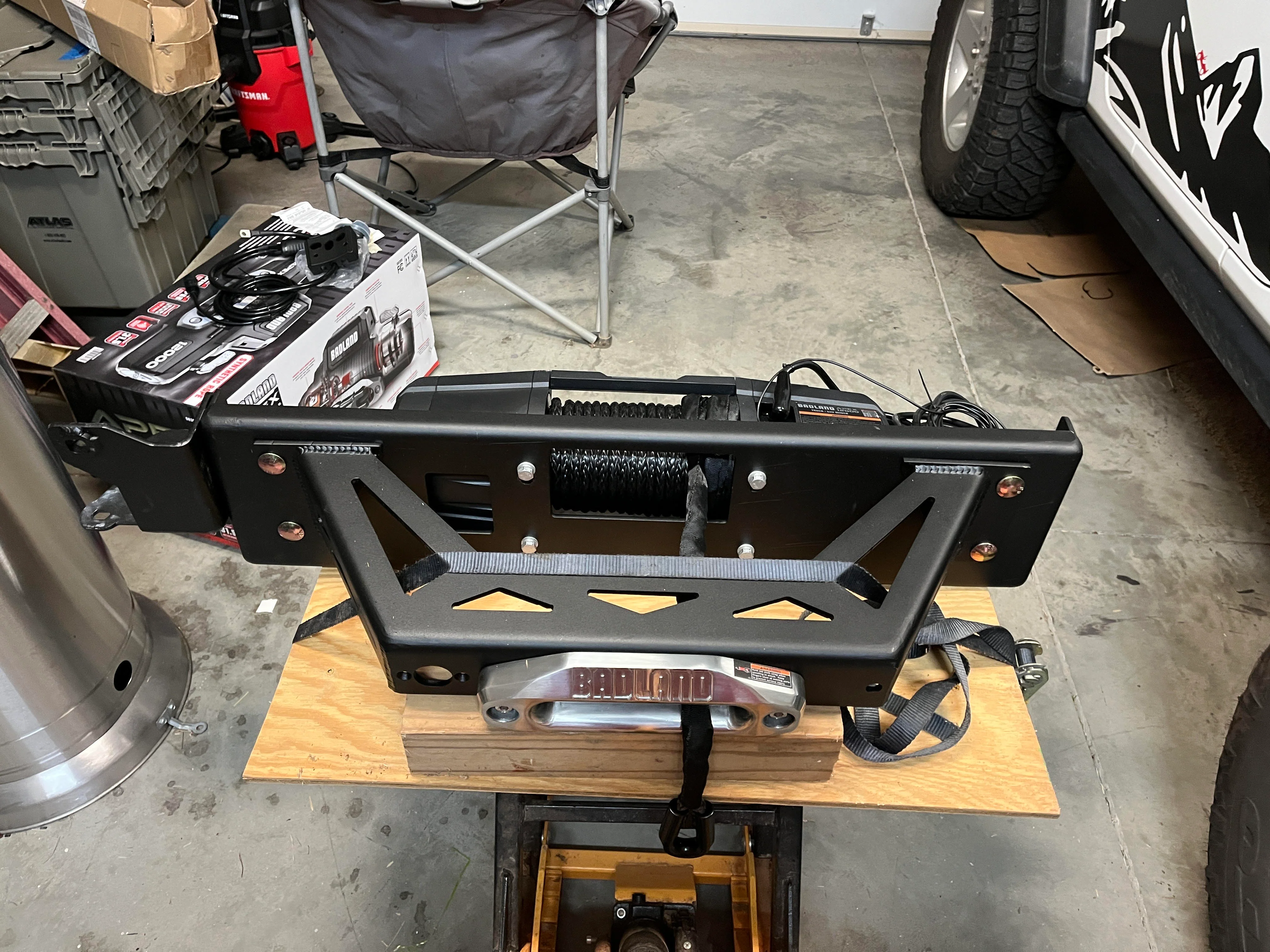

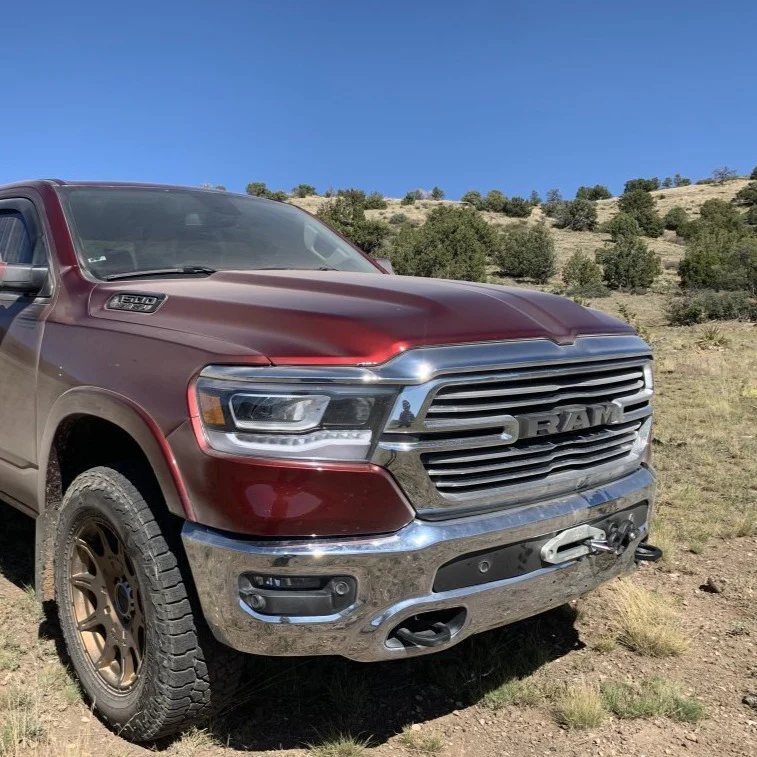

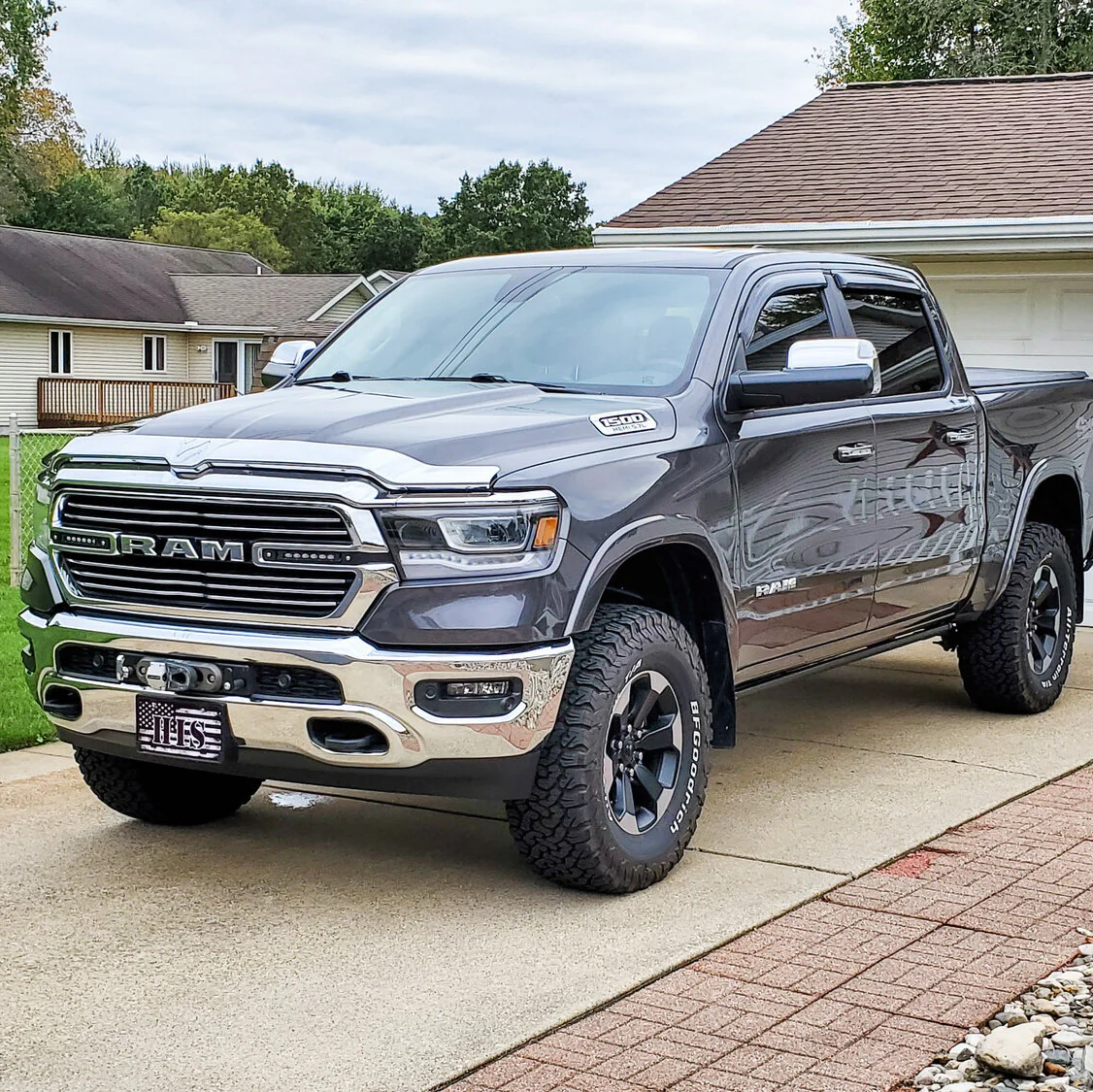

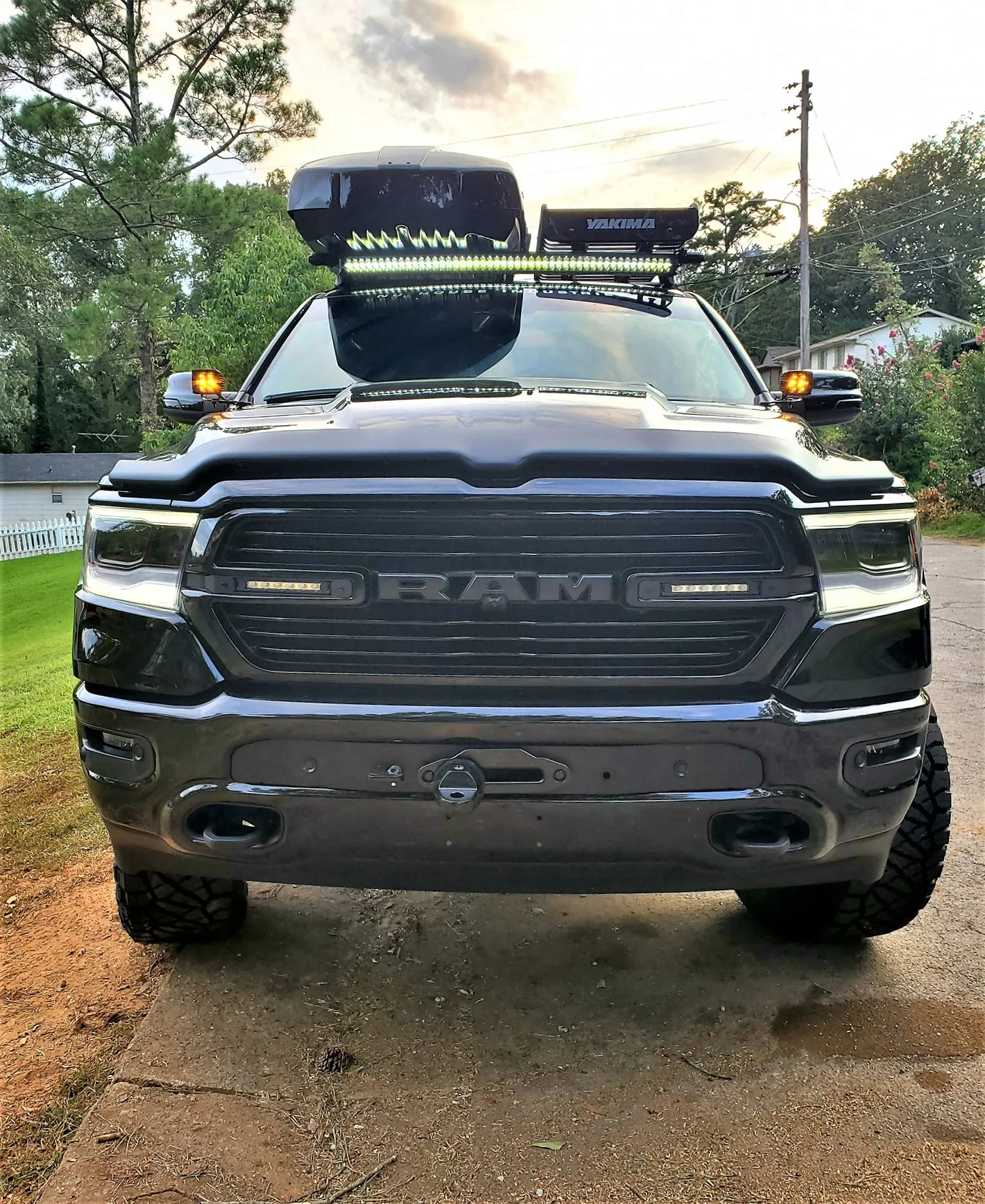

We set the industry standard in winch mounts for your 2019 - 2024 RAM 1500 DT. Our bracket kit integrates seamlessly behind your factory bumper enabling you to confidently take your RAM 1500DT further than Mopar ever dreamed.

FEATURES

PROVEN STRENGTH -  Our hidden winch mounts are built upon a decade dedicated to off-Road solutions for RAM trucks. Manufactured from high quality plate steel which ties into robust frame structures using high quality hardware

EASY TO USE - Easily access winch controls with our Clutch Handle and Control Box Relocation Kits.

LOW PROFILE - Adds zero length to your truck, keeping it light and nimble for the trails

COMPLETE KIT - Add Hand picked Winches and VICE designed accessories for a 1 stop stop package. Includes all necessary installation hardware

NO RATTLES - Everything is strapped down tight thanks to our Secure Winch Hook Mount.

RELIABLE - 100% Designed, Formed, Welded, and Powdercoated by VICE professionals here in North America

INSTALLATION & OVERVIEW VIDEO

UPGRADES AND WHAT THEY DO:

BUMPER GRILL INSERT

We sell a replacement insert designed for customers who do not wish to cut the Bumpers' Factory Plastic insert. This Part bolts into the bumper using existing slots and fasteners.

This replacement part is made from stainless steel and powder coated a satin textured black which matches the plastic part it replaces.

To add this to your order, select the bumper insert from the drop down menu above.

CLUTCH RELOCATION KIT

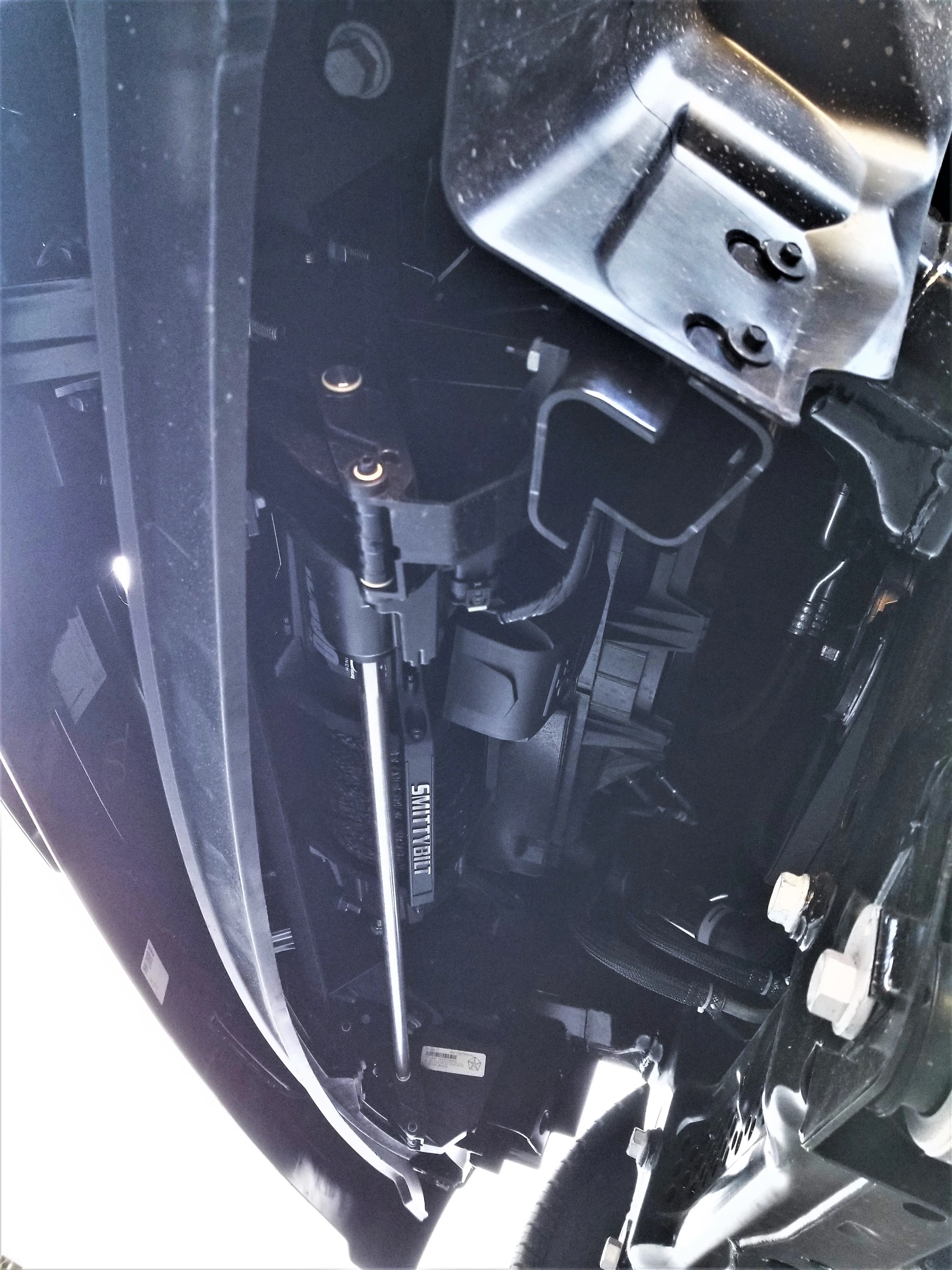

An industry first option for our bracket kit is our revolutionary Clutch Relocation Kit! Accessing the clutch handle on select WARN or Smittybilt Winches has never been easier! The Clutch handle is positioned directly beside the fairlead on the bumper giving you rapid and safe access to engage or disengage the winch drum.

There are two options for this:

The WARN VR EVO fits Warn VR EVO PN 103255, 103254, 103253 and 103252

The Smittybilt X20 fits the GEN3 X20 Winches PN 98812 and 98810

CONTROL BOX RELOCATION KIT

Want the upmost reliability? Don't forget to add the Control Box Relocation Kit. This kit we build moves the brain box of the winch into the engine bay of your truck. This has multiple advantages.

Firstly - this makes plugging in your winch controller very easy and safe. Simply pop your hood and plug it in.

Secondly - the control box is the least waterproof and most likely part to cause your winch to fail. Moving it to the top of the engine bay keeps the contactors and electrical connections away from submersion in water, mud and road grime.

Bolt-on kits currently available for WARN VR EVO and SMITTYBILT X20 Gen3 Winches.

COMPATIBILITY

This mounting kit is designed to work with 2019 - 2024 RAM 1500 DT (NEW BODYSTYLE) Trucks that came equipped with GAS motors. These are the 3.6L Pentastar V6 engine, and the 5.7L Hemi V8 engine. E-torque compatible as well.

Unfortunately this kit is not compatible with trucks equipped with the EcoDiesel Motor as the intercooler location interferes with the bracket and winch.

This hidden winch mount is designed to work with Synthetic Rope winches that come with Hawse fairleads (Roller systems not compatible without custom fabrication. If you’re set on using steel cable, Warn sells a compatible Steel Hawse Fairlead (PN WARN 73850)

INSTALLATION INSTRUCTIONS

 RAM 1500 DT  HIDDEN WINCH INSTALLATION MANUAL - MN0102
